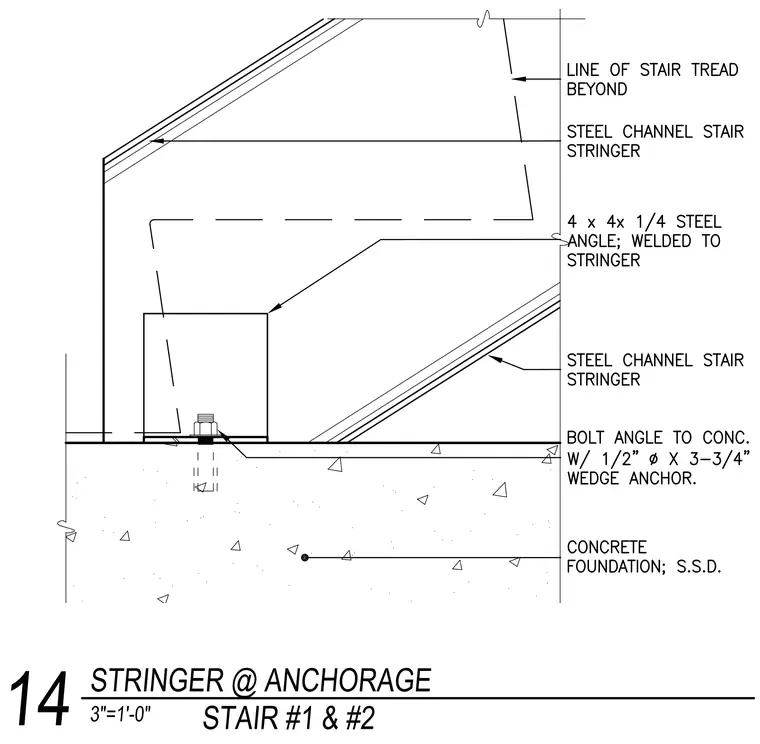

A steel channel stair stringer is supported by a four-by-four-by-one-quarter-inch steel angle welded to the stringer. The steel angle is bolted to the concrete foundation using a one-half-inch-diameter by three-and-three-quarter-inch wedge anchor. The concrete foundation includes reinforcing steel as detailed. The assembly provides structural support for the stair stringer at its base connection.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
