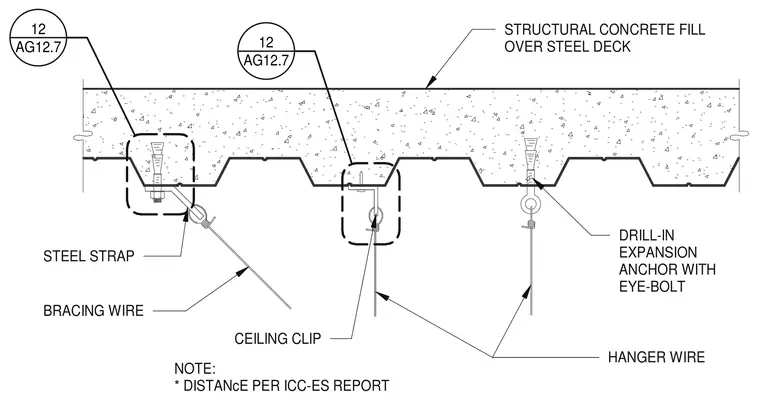

Ceiling hanger wires and steel strap bracing are anchored to a structural concrete fill over steel deck using drill-in expansion anchors with eye-bolts. A ceiling clip supports the vertical hanger wire, while a steel strap provides diagonal bracing secured via an eye-bolt hanger wire connection. Anchor spacing distances conform to the applicable ICC-ES report.
STEEL STRAP BRACING WIRE NOTE: * DISTANcE PER ICC-ES REPORT CEILING CLIP DRILL-IN EXPANSION ANCHOR WITH EYE-BOLT HANGER WIRE STRUCTURAL CONCRETE FILL OVER STEEL DECK AG12.7 12 AG12.7 12
