Interior Partition Head and Sill Slip Track Detail

Materials

Elements

About this detail

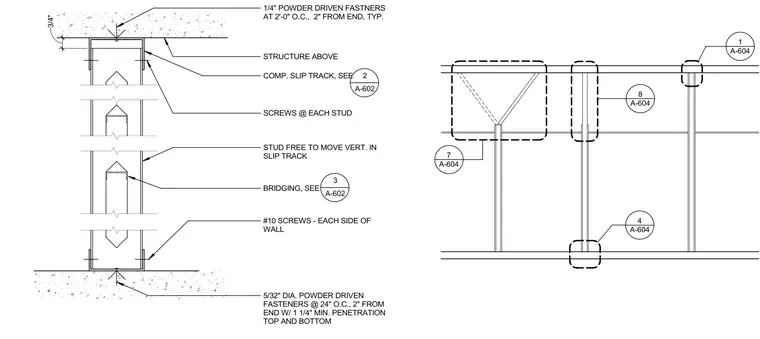

The cold-formed steel stud wall connects to the structure above via a compatible slip track, allowing studs to move vertically within the track. The slip track is secured to the overhead structure with 1/4-inch powder-driven fasteners spaced at 24 inches on center with 2 inches from the end, maintaining a 3/4-inch clearance gap. Studs are fastened to the slip track with screws at each stud, and interior bridging is installed per plan. At the base, the bottom track is secured with 5/32-inch diameter powder-driven fasteners at 24 inches on center with 2 inches from the end and a 1-1/4-inch minimum penetration. Wall framing is tied together with number 10 screws on each side of the wall.
