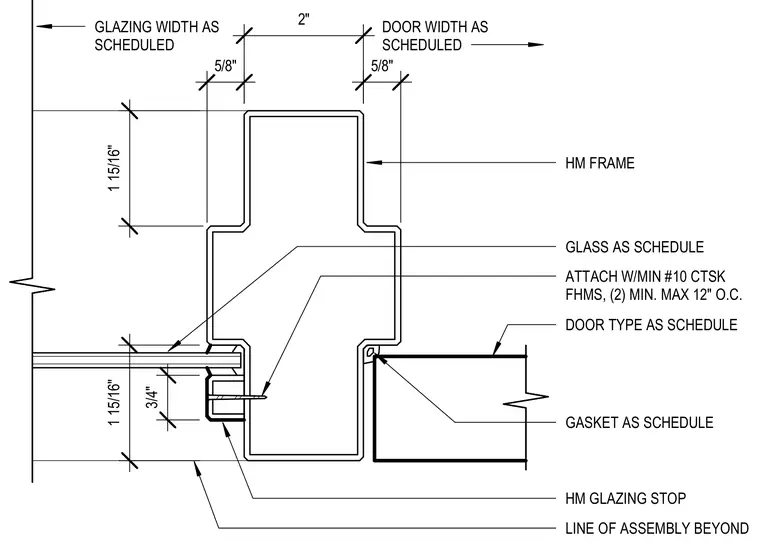

This hollow metal frame jamb detail connects a door and adjacent sidelight assembly. The hollow metal frame is secured with a minimum of number ten countersunk flat head machine screws spaced a maximum of twelve inches on center. A hollow metal glazing stop retains the glass as scheduled with a line of assembly beyond. A gasket as scheduled seals the interface with the door leaf of the specified type.
2" 5/8" 5/8" 3/4" 1 15/16" 1 15/16" HM GLAZING STOP LINE OF ASSEMBLY BEYOND GLAZING WIDTH AS SCHEDULED HM FRAME ATTACH W/MIN #10 CTSK FHMS, (2) MIN. MAX 12" O.C. DOOR TYPE AS SCHEDULE GASKET AS SCHEDULE DOOR WIDTH AS SCHEDULED GLASS AS SCHEDULE
