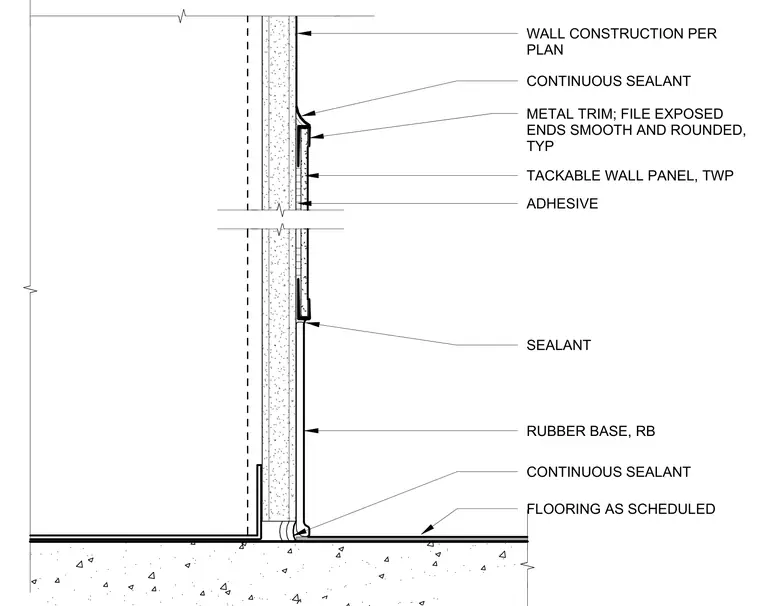

The tackable wall panel is secured to the wall construction per plan using an adhesive. Metal trim captures the panel edges, with exposed ends filed smooth and rounded typically. Continuous sealant is applied at the joints between the metal trim and panels. At the floor junction, a rubber base is installed with continuous sealant above the scheduled flooring.
WALL CONSTRUCTION PER PLAN RUBBER BASE, RB CONTINUOUS SEALANT CONTINUOUS SEALANT SEALANT TACKABLE WALL PANEL, TWP ADHESIVE FLOORING AS SCHEDULED METAL TRIM; FILE EXPOSED ENDS SMOOTH AND ROUNDED, TYP
