A suspended acoustical ceiling intersects a framed vertical gypsum board soffit that is braced back to the overhead structure. The soffit is constructed using three-and-five-eighths-inch minimum cold-formed metal studs with size, gauge, and spacing per structural requirements and a one-half-inch deflection limit of L over four hundred twenty. Three-and-five-eighths-inch metal stud bracing is spaced at forty-eight inches on center to anchor the soffit assembly. Five-eighths-inch gypsum wallboard finishes the faces with a typical corner bead at the outside corner. Suspended acoustical ceiling systems tie into the assembly per plans at the top and bottom conditions.

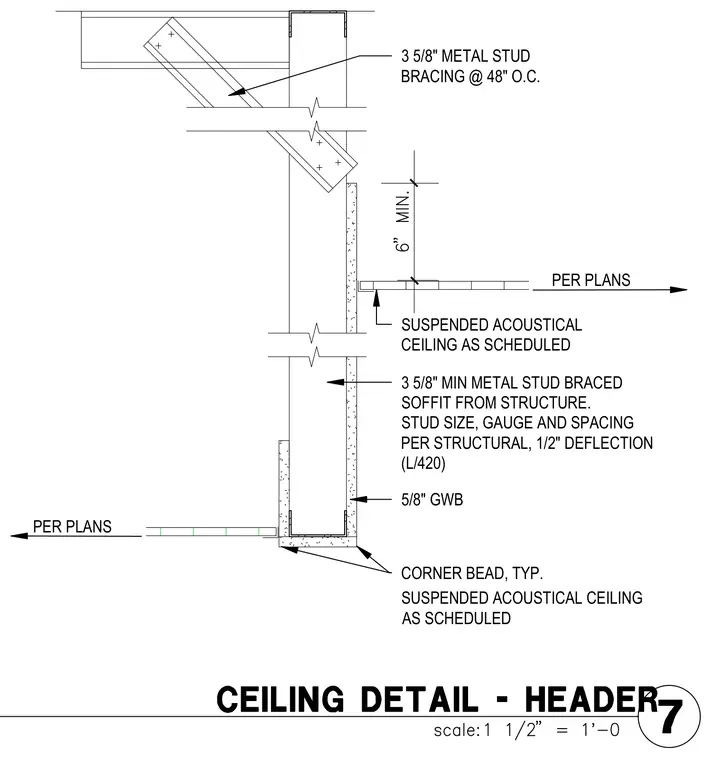

PER PLANS 3 5/8" METAL STUD BRACING @ 48" O.C. SUSPENDED ACOUSTICAL CEILING AS SCHEDULED 3 5/8" MIN METAL STUD BRACED SOFFIT FROM STRUCTURE. STUD SIZE, GAUGE AND SPACING PER STRUCTURAL, 1/2" DEFLECTION (L/420) 5/8" GWB CORNER BEAD, TYP. PER PLANS SUSPENDED ACOUSTICAL CEILING AS SCHEDULED
