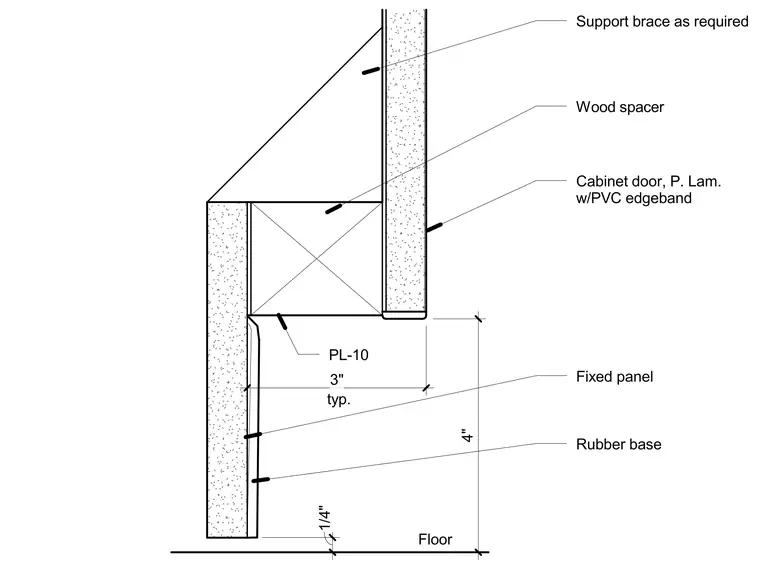

The base assembly for an ADA accessible sink cabinet rests above the floor finish. A plastic laminate cabinet door with PVC edge banding is supported by a wood spacer and attached with a support brace as required. A fixed panel extends down toward the floor, finished with a 4-inch rubber base. The assembly is detailed with a typical 3-inch dimension and a 1/4-inch clearance above the floor.
Support brace as required Wood spacer Cabinet door, P. Lam. w/PVC edgeband PL-10 Fixed panel Rubber base Floor 1/4" typ. 4" 3"
