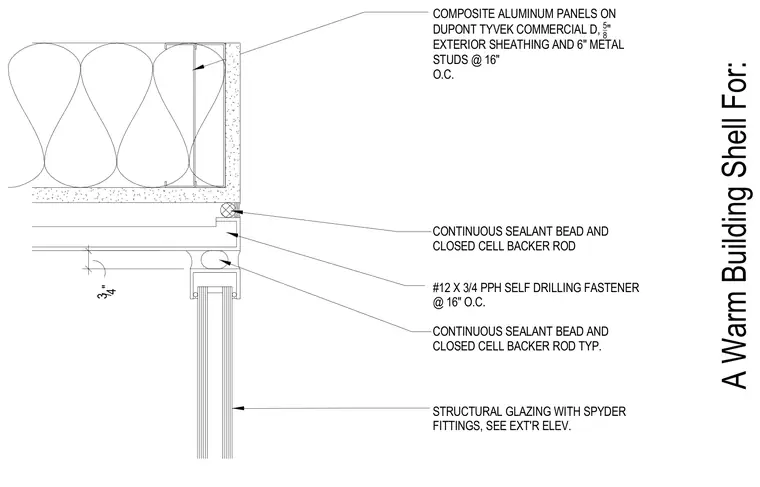

A structural glass assembly with spider fittings transitions to an exterior wall featuring composite aluminum panels over Dupont Tyvek Commercial D weather barrier, five-eighths inch exterior sheathing, and six-inch metal studs spaced at sixteen inches on center. The joint between the glazing system and the wall is sealed with a continuous three-quarter-inch sealant bead and closed-cell backer rod. Components are secured using number twelve by three-quarter-inch pan head Phillips self-drilling fasteners spaced at sixteen inches on center.
3/4" CONTINUOUS SEALANT BEAD AND CLOSED CELL BACKER ROD TYP. STRUCTURAL GLAZING WITH SPYDER FITTINGS, SEE EXT'R ELEV. CONTINUOUS SEALANT BEAD AND CLOSED CELL BACKER ROD COMPOSITE ALUMINUM PANELS ON DUPONT TYVEK COMMERCIAL D, 5_ 8 " EXTERIOR SHEATHING AND 6" METAL STUDS @ 16" O.C. #12 X 3/4 PPH SELF DRILLING FASTENER @ 16" O.C. A Warm Building Shell For:
