Wood Frame Door Jamb and Wood Frame Door Head

Materials

Elements

About this detail

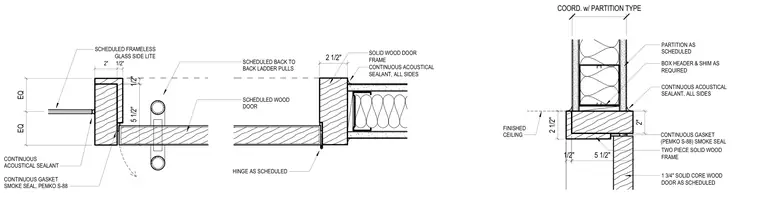

A wood door frame assembly is set within a partition wall, featuring a two-piece solid wood frame receiving a one-and-three-quarter-inch solid core wood door. A continuous smoke seal gasket by Pemko S-88 is installed along the jamb and head, complemented by continuous acoustical sealant on all sides of the frame. The door operates on scheduled hinges and includes back-to-back ladder pulls. A scheduled frameless glass sidelite connects directly to the wood frame assembly with equal spacing layout dimensions. The head detail ties into a box header with shims as required below the scheduled partition wall type, maintaining a consistent two-and-one-half-inch profile matching the finished ceiling height.
