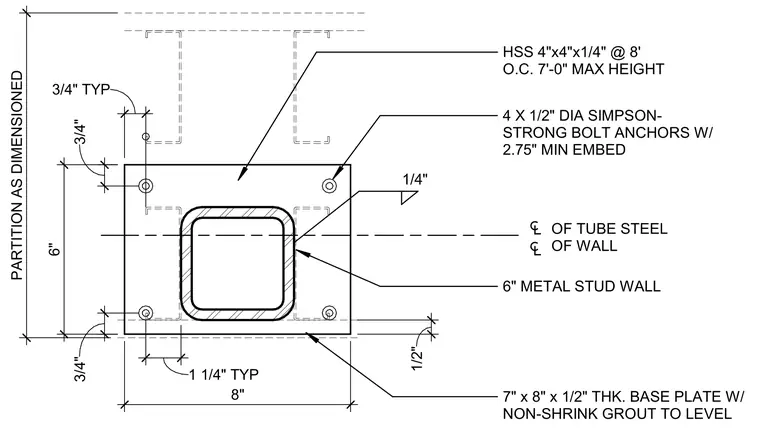

A 7-inch by 8-inch by 1/2-inch thick base plate receives a 4-inch by 4-inch by 1/4-inch hollow structural section steel tube at a metal stud wall. Four 1/2-inch diameter Simpson Strong-Bolt anchors with 2.75-inch minimum embedment secure the base plate to the supporting concrete. Non-shrink grout is applied beneath the plate for leveling, and a 1/4-inch fillet weld connects the tube steel to the base plate.
HSS 4"x4"x1/4" @ 8' O.C. 7'-0" MAX HEIGHT 3/4" TYP PARTITION AS DIMENSIONED 6" 3/4" 3/4" 8" 1 1/4" TYP OF TUBE STEEL OF WALL 6" METAL STUD WALL 7" x 8" x 1/2" THK. BASE PLATE W/ NON-SHRINK GROUT TO LEVEL 1/4" 4 X 1/2" DIA SIMPSON- STRONG BOLT ANCHORS W/ 2.75" MIN EMBED 1/2"
