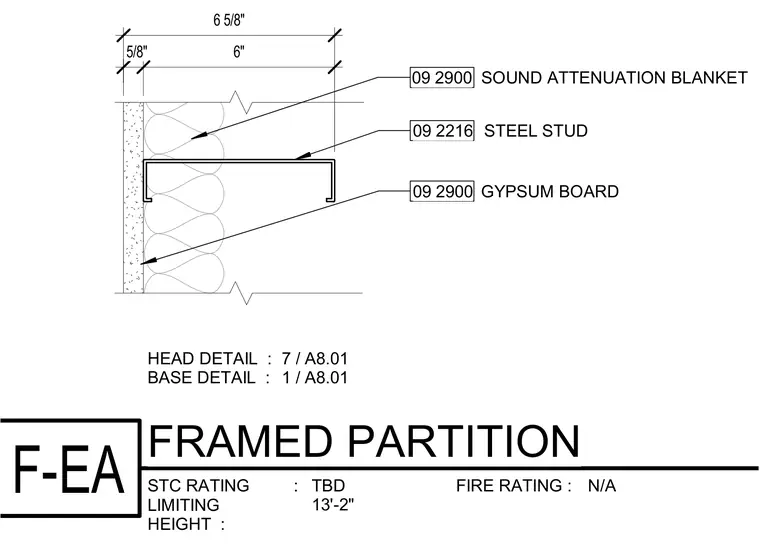

A six-inch steel stud forms the core of the partition framing, faced on both sides with gypsum board layers. A sound attenuation blanket fills the interior cavity between the studs for acoustic performance. Overall wall thickness measures six and five-eighths inches.
5/8" 6" 09 2216 STEEL STUD STC RATING : FIRE RATING : LIMITING HEIGHT : HEAD DETAIL : BASE DETAIL : F-EA FRAMED PARTITION TBD N/A 13'-2" 7 / A8.01 1 / A8.01 6 5/8" 09 2900 SOUND ATTENUATION BLANKET 09 2900 GYPSUM BOARD
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
