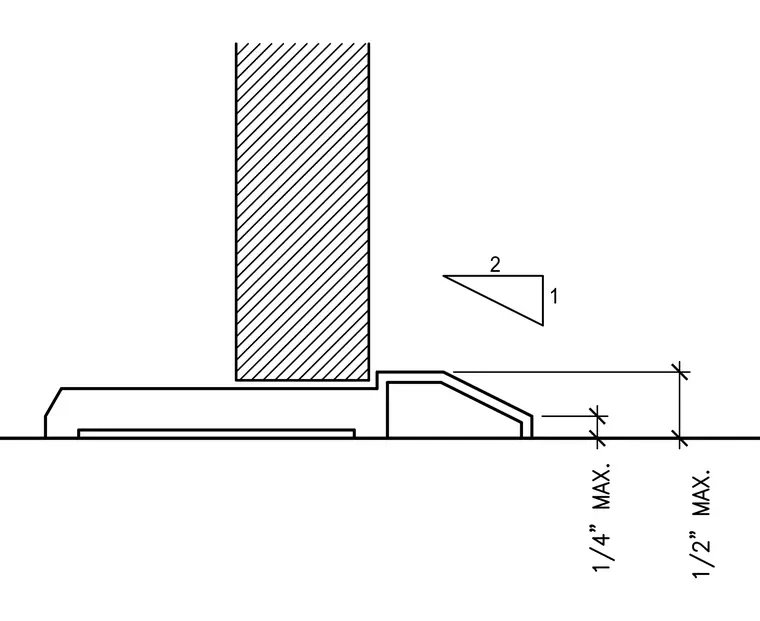

A door threshold assembly sits upon a finished floor surface with a maximum height of one-half inch. The beveled edge features a slope ratio of two to one. A maximum clearance of one-quarter inch is indicated above the finished floor level.
