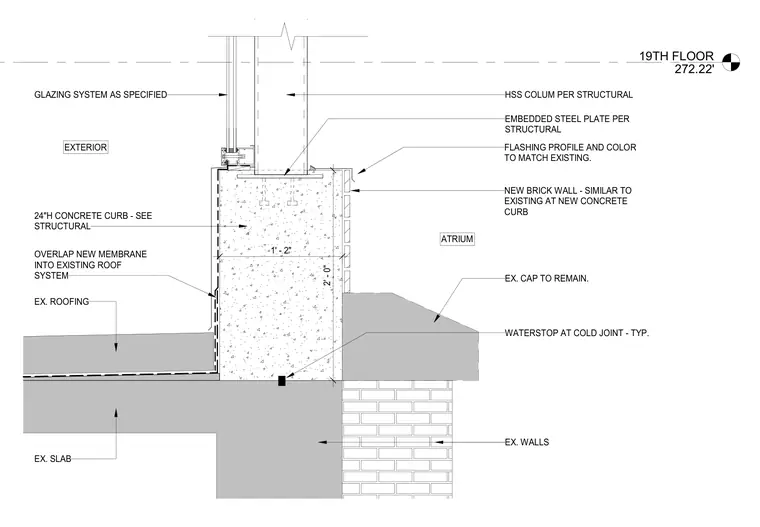

Base connection of an exterior atrium skylight system supported by a twenty-four-inch concrete curb over an existing concrete slab. A hollow structural section column bears onto an embedded steel plate anchored to the top of the new concrete curb. A waterstop is placed at the typical cold joint between the curb and slab, while a new waterproofing membrane overlaps into the existing roof system. The exterior face receives a glazing system, and the interior side features a new brick wall matching the existing construction below with an existing cap remaining in place.
19TH FLOOR 272.22' 2' - 0" 1' - 2" HSS COLUM PER STRUCTURAL NEW BRICK WALL - SIMILAR TO EXISTING AT NEW CONCRETE CURB GLAZING SYSTEM AS SPECIFIED EX. ROOFING OVERLAP NEW MEMBRANE INTO EXISTING ROOF SYSTEM 24"H CONCRETE CURB - SEE STRUCTURAL WATERSTOP AT COLD JOINT - TYP. EMBEDDED STEEL PLATE PER STRUCTURAL EXTERIOR ATRIUM EX. SLAB EX. WALLS EX. CAP TO REMAIN. FLASHING PROFILE AND COLOR TO MATCH EXISTING.
