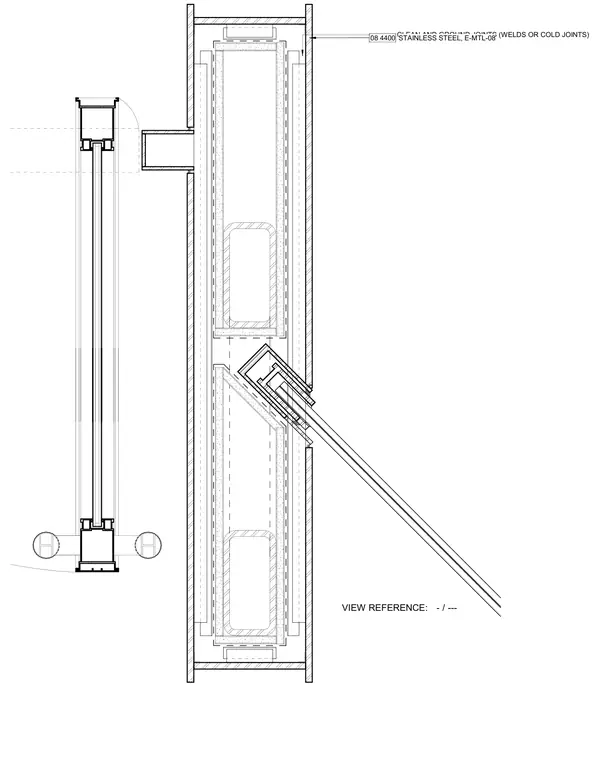

Stainless steel entrance door jamb assembly features custom formed metal shapes with internal structural steel tube framing. Joints in the stainless steel members are specified to be clean and ground smooth, including welds or cold joints. The assembly integrates with the surrounding lobby architectural framing and glazing elements.
/ VIEW REFERENCE: - --- CLEAN AND GROUND JOINTS (WELDS OR COLD JOINTS) 08 4400 STAINLESS STEEL, E-MTL-08
