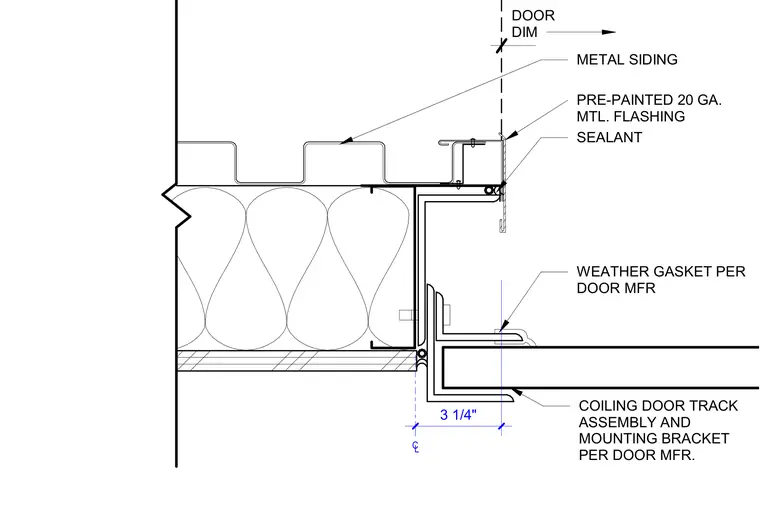

The assembly transitions from metal siding to a coiling door track via a pre-painted twenty-gauge metal flashing sealed in place. A weather gasket specified per the door manufacturer is integrated into the track assembly and mounting bracket. The door dimension is referenced from the centerline of the jamb assembly.
DOOR DIM WEATHER GASKET PER DOOR MFR COILING DOOR TRACK ASSEMBLY AND MOUNTING BRACKET PER DOOR MFR. SEALANT PRE-PAINTED 20 GA. MTL. FLASHING METAL SIDING C L 3 1/4"
