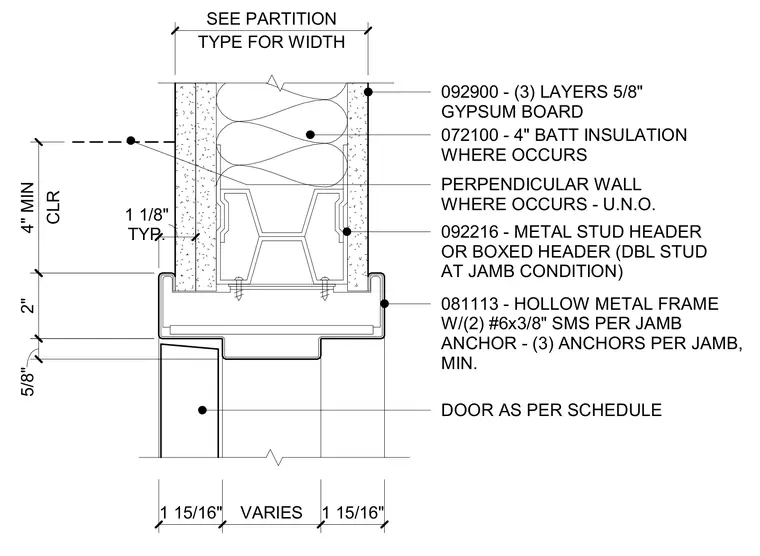

This interior door head detail features a hollow metal frame secured to a cold-formed steel metal stud header or boxed header with a double stud condition at the jamb. The frame is anchored using two number six by three-eighth inch sheet metal screws per jamb anchor, with a minimum of three anchors per jamb. The surrounding partition is framed with cold-formed steel studs and finished with three layers of five-eighth inch gypsum board on each face. Four-inch batt insulation is included within the stud cavity where required. A four-inch minimum clearance is maintained to perpendicular walls where applicable, and the door is provided as scheduled.
2" 092216 - METAL STUD HEADER OR BOXED HEADER (DBL STUD AT JAMB CONDITION) 081113 - HOLLOW METAL FRAME W/(2) #6x3/8" SMS PER JAMB ANCHOR - (3) ANCHORS PER JAMB, MIN. 092900 - (3) LAYERS 5/8" GYPSUM BOARD CLR 4" MIN PERPENDICULAR WALL WHERE OCCURS - U.N.O. DOOR AS PER SCHEDULE 1 15/16" VARIES 1 15/16" TYP. 1 1/8" 5/8" 072100 - 4" BATT INSULATION WHERE OCCURS TYPE FOR WIDTH SEE PARTITION
