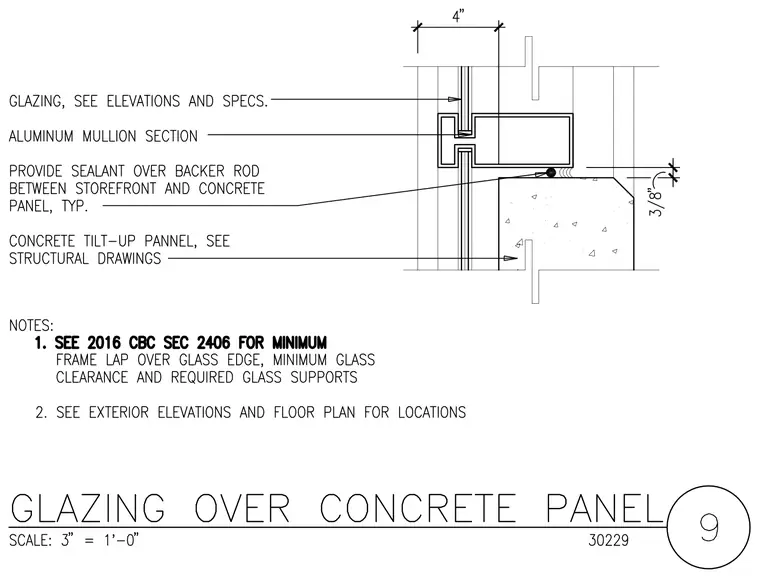

An aluminum mullion section frames the glazing unit, which is specified per elevations and technical specifications. Sealant over a backer rod fills the joint between the storefront and the concrete tilt-up panel, maintaining a three-eighths-inch clearance gap. The concrete tilt-up panel is coordinated per structural drawings. General notes reference California Building Code section 2406 for minimum frame lap over glass edge, minimum glass clearance, and required glass supports.
