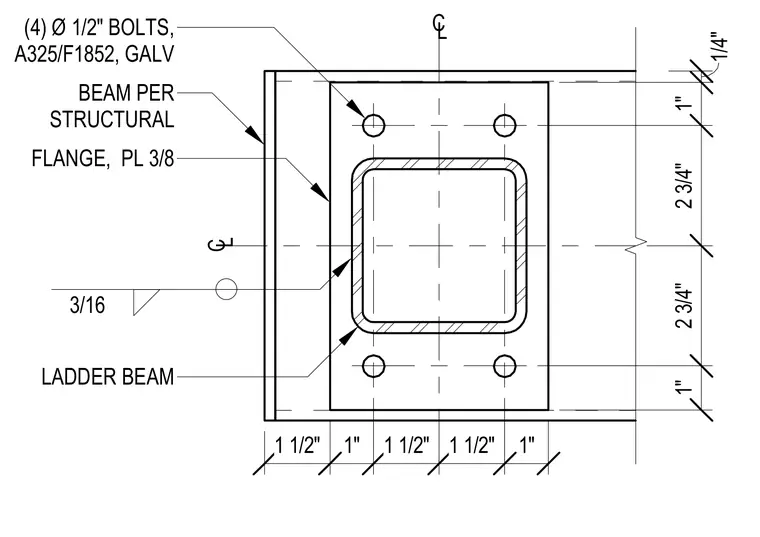

This structural connection detail features a ladder beam secured to a structural member using a three-eighths inch flange plate. Four half-inch diameter ASTM A325 or F1852 galvanized bolts fasten the assembly in a symmetrical layout. A three-sixteenths inch fillet weld secures the connection components.
BEAM PER STRUCTURAL (4) Ø 1/2" BOLTS, A325/F1852, GALV FLANGE, PL 3/8 3/16 1 1/2" 1" 1 1/2" 1 1/2" 1" 1" 2 3/4" 2 3/4" 1" 1/4" C L C L LADDER BEAM
