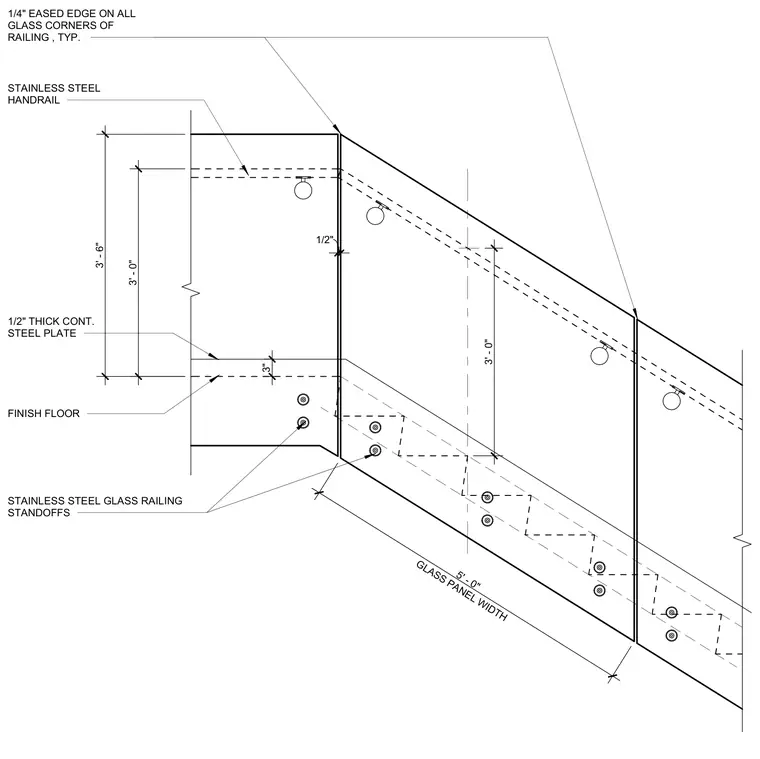

A glass stair guardrail assembly mounts to the stair structure using stainless steel glass railing standoffs with five-foot panel widths. A half-inch thick continuous steel plate embeds at the finish floor level to anchor the railing system. A stainless steel handrail attaches via standoffs set three feet above the finish floor line. All glass panel corners feature a quarter-inch eased edge.
3' - 6" 3' - 0" GLASS PANEL WIDTH 5' - 0" 3' - 0" STAINLESS STEEL GLASS RAILING STANDOFFS FINISH FLOOR 3" 1/2" THICK CONT. STEEL PLATE STAINLESS STEEL HANDRAIL 1/2" 1/4" EASED EDGE ON ALL GLASS CORNERS OF RAILING , TYP.
