Text on the drawing

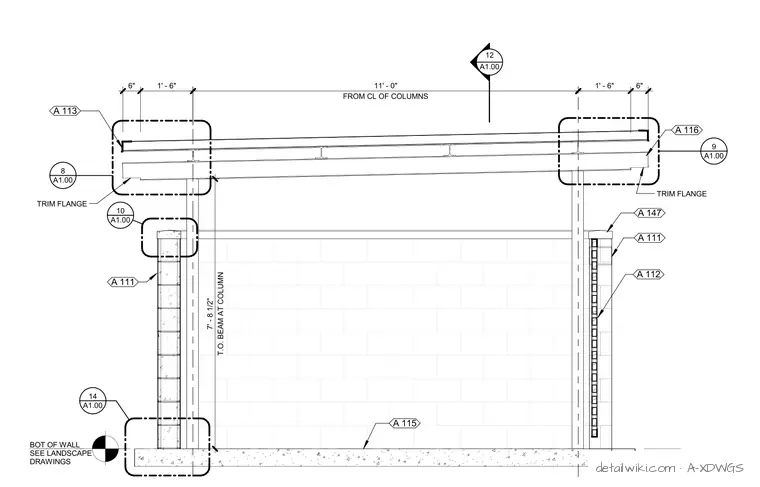

12 A1.00 FROM CL OF COLUMNS 11' - 0" 1' - 6" 6" TRIM FLANGE T.O. BEAM AT COLUMN 7' - 8 1/2" 6" 1' - 6" A1.00 10 A1.00 14 A 116 A 113 A 111 A 112 A 111 TRIM FLANGE A1.00 8 A1.00 9 A 115 A 147 BOT OF WALL SEE LANDSCAPE DRAWINGS
