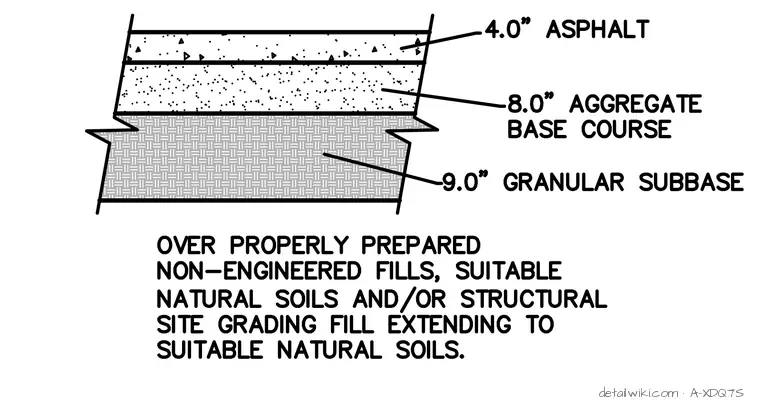

The pavement assembly consists of a four-inch thick asphalt surface course placed over an eight-inch thick aggregate base course. Beneath the base course lies a nine-inch thick granular subbase. This entire pavement structure is supported by properly prepared non-engineered fills, suitable natural soils, or structural site grading fill that extends down to suitable natural soils.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
