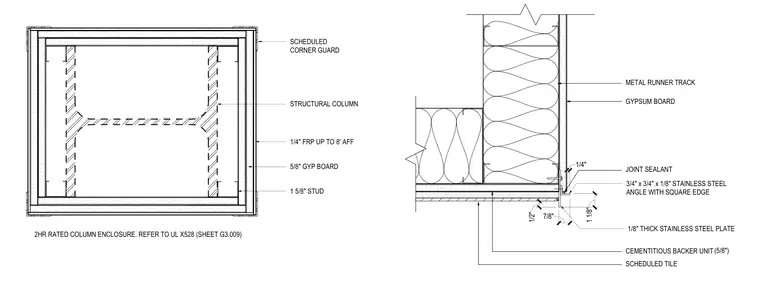

A structural column features a two-hour fire-rated enclosure constructed with one and five-eighths inch metal studs and five-eighths inch gypsum board. The exterior is finished with quarter-inch fiber-reinforced plastic up to eight feet above finished floor, and scheduled tile over a five-eighths inch cementitious backer unit at specific corner conditions. A three-quarter by three-quarter by one-eighth inch stainless steel angle with a square edge and a one-eighth inch thick stainless steel plate finish the transition, sealed with joint sealant.
SCHEDULED TILE GYPSUM BOARD 3/4" x 3/4" x 1/8" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1/8" THICK STAINLESS STEEL PLATE CEMENTITIOUS BACKER UNIT METAL RUNNER TRACK (5/8") 1/4" 1/2" 1 1/8" 7/8" JOINT SEALANT 1/4" FRP UP TO 8' AFF 5/8" GYP BOARD 1 5/8" STUD SCHEDULED CORNER GUARD STRUCTURAL COLUMN 2HR RATED COLUMN ENCLOSURE. REFER TO UL X528 (SHEET G3.009)
