Curtain Wall Sill and Floor Anchorage Detail at Steel Beam

Materials

Steel Glass / Glazing Aluminum Metal (misc.)

Elements

About this detail

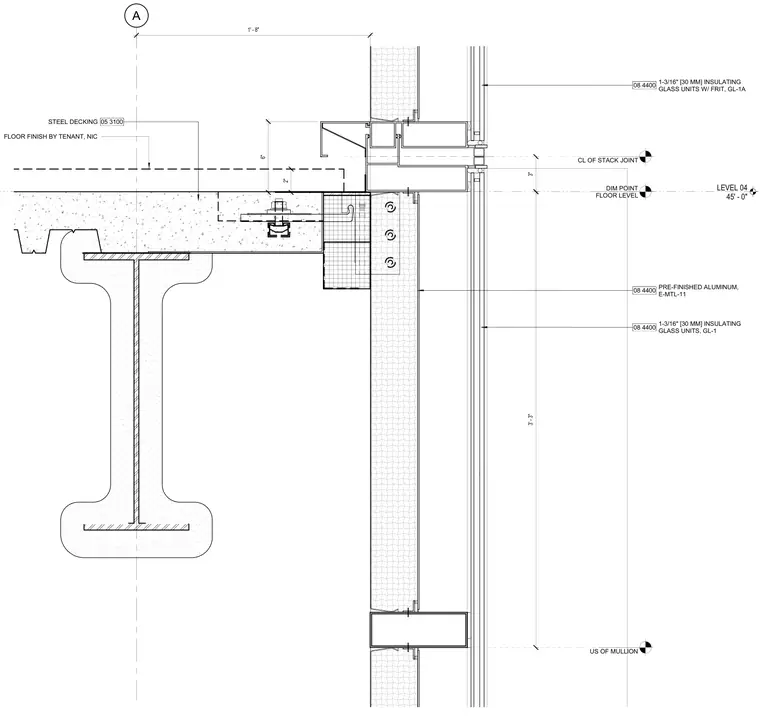

A pre-finished aluminum curtain wall sill assembly connects to the edge of a concrete-filled steel decking slab, supported by a wide-flange steel beam at Level 04 elevation 45'-0". The curtain wall incorporates one-and-three-sixteenth-inch insulating glass units with frit and standard insulating glass units, separated by stack joints. The slab edge features an embedded anchor channel connected to the structural floor assembly, set two inches below the top of the stack joint dimension point. Floor finishes are by tenant and designated as not in contract.
