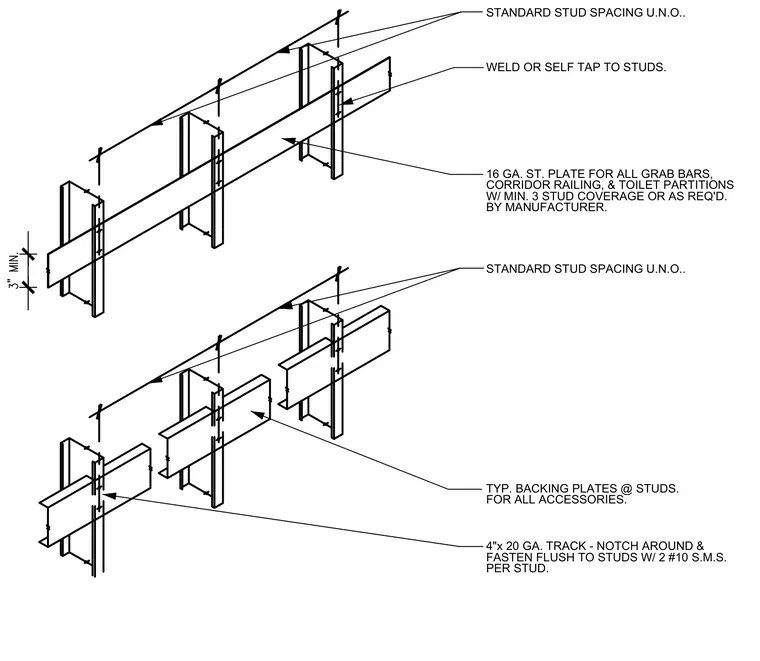

Typical steel backing plate installations within metal stud partition framing. A sixteen gauge steel plate spans across multiple studs with a minimum of three stud coverage, providing structural support for grab bars, corridor railings, and toilet partitions. A four-inch twenty gauge track is notched around and fastened flush to the studs using two number ten sheet metal screws per stud. Backing plates are welded or self-tapped directly to the metal studs set at standard spacing unless noted otherwise.
W/ MIN. 3 STUD COVERAGE OR AS REQ'D. BY MANUFACTURER. CORRIDOR RAILING, & TOILET PARTITIONS 16 GA. ST. PLATE FOR ALL GRAB BARS, FASTEN FLUSH TO STUDS W/ 2 #10 S.M.S. 4"x 20 GA. TRACK - NOTCH AROUND & TYP. BACKING PLATES @ STUDS. FOR ALL ACCESSORIES. WELD OR SELF TAP TO STUDS. STANDARD STUD SPACING U.N.O.. PER STUD. STANDARD STUD SPACING U.N.O..
