The assembly consists of a central steel stud with a single layer of gypsum wallboard on one side and two layers of gypsum wallboard on the opposite side. Leader notes indicate that the wall tag is placed on plan on the side of the wall with the extra gypsum wallboard layer. This construction detail illustrates standard interior partition framing and layering practices.

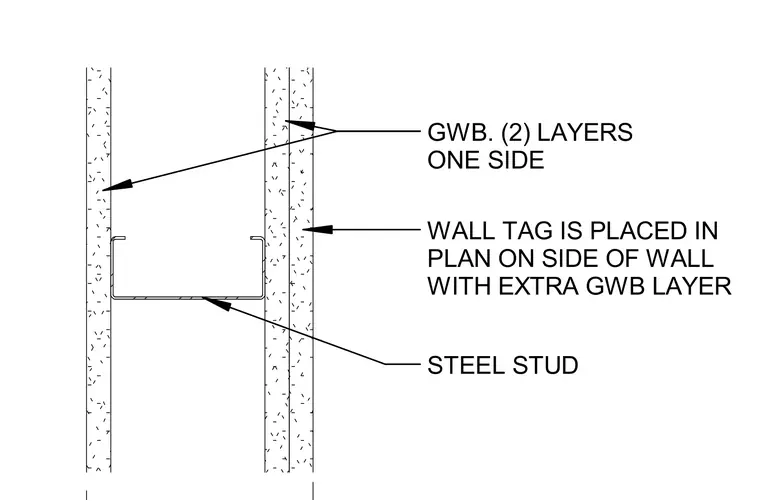

STEEL STUD GWB. (2) LAYERS ONE SIDE WALL TAG IS PLACED IN PLAN ON SIDE OF WALL WITH EXTRA GWB LAYER
