An operable partition system with sound seals engages the jamb of a scheduled metal stud wall framed with six-inch metal studs spaced at sixteen inches on center maximum. The adjacent wall features two layers of eighteen-gauge metal studs mechanically fastened at the jambs and is finished with five-eighths-inch gypsum board over framing with paint. Sound batt insulation fills the stud cavity. The operable door system includes white boards and integrates with the jamb seals.

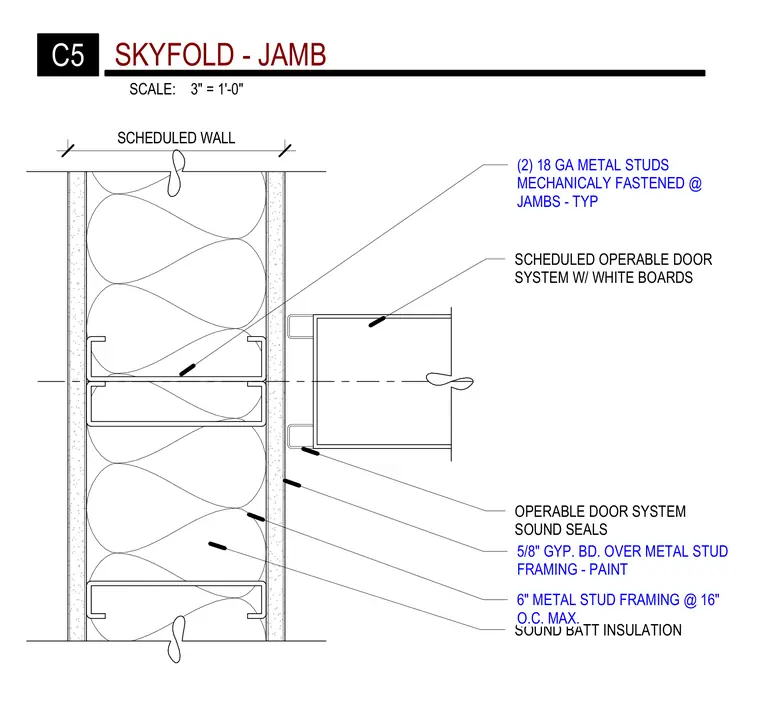

SOUND BATT INSULATION SCHEDULED OPERABLE DOOR SYSTEM W/ WHITE BOARDS SCHEDULED WALL (2) 18 GA METAL STUDS MECHANICALY FASTENED @ JAMBS - TYP OPERABLE DOOR SYSTEM SOUND SEALS 5/8" GYP. BD. OVER METAL STUD FRAMING - PAINT 6" METAL STUD FRAMING @ 16" O.C. MAX. SCALE: 3" = 1'-0" C5 SKYFOLD - JAMB
