Partition types P4A and P4B are two-hour fire-rated wall assemblies complying with UL U415 System B. Assembly P4A consists of two layers of five-eighths-inch type C impact-rated gypsum board, six-inch C-H metal studs, full-cavity sound-attenuated mineral wool R-twenty-four batt insulation, and one-inch type SLX shaft liner. Assembly P4B uses identical layers of gypsum board and shaft liner with four-inch C-H metal studs. All sound-rated walls extend from the floor below the roof to the structure above, with acoustic sealant applied at the bottom and top of the wall.

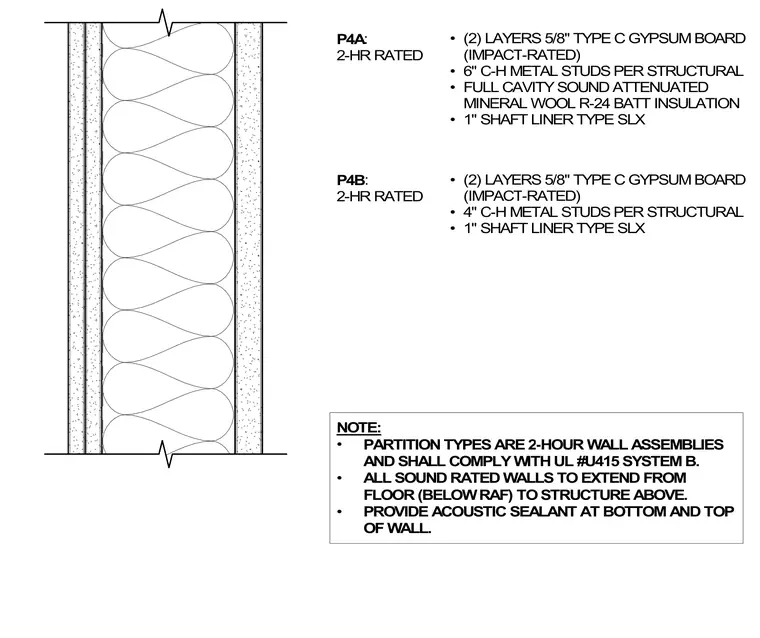

NOTE: • PARTITION TYPES ARE 2-HOUR WALL ASSEMBLIES AND SHALL COMPLY WITH UL #U415 SYSTEM B. • ALL SOUND RATED WALLS TO EXTEND FROM FLOOR (BELOW RAF) TO STRUCTURE ABOVE. • PROVIDE ACOUSTIC SEALANT AT BOTTOM AND TOP OF WALL. P4A : 2-HR RATED • (2) LAYERS 5/8" TYPE C GYPSUM BOARD (IMPACT-RATED) • 6" C-H METAL STUDS PER STRUCTURAL • FULL CAVITY SOUND ATTENUATED MINERAL WOOL R-24 BATT INSULATION • 1" SHAFT LINER TYPE SLX P4B : 2-HR RATED • (2) LAYERS 5/8" TYPE C GYPSUM BOARD (IMPACT-RATED) • 4" C-H METAL STUDS PER STRUCTURAL • 1" SHAFT LINER TYPE SLX
