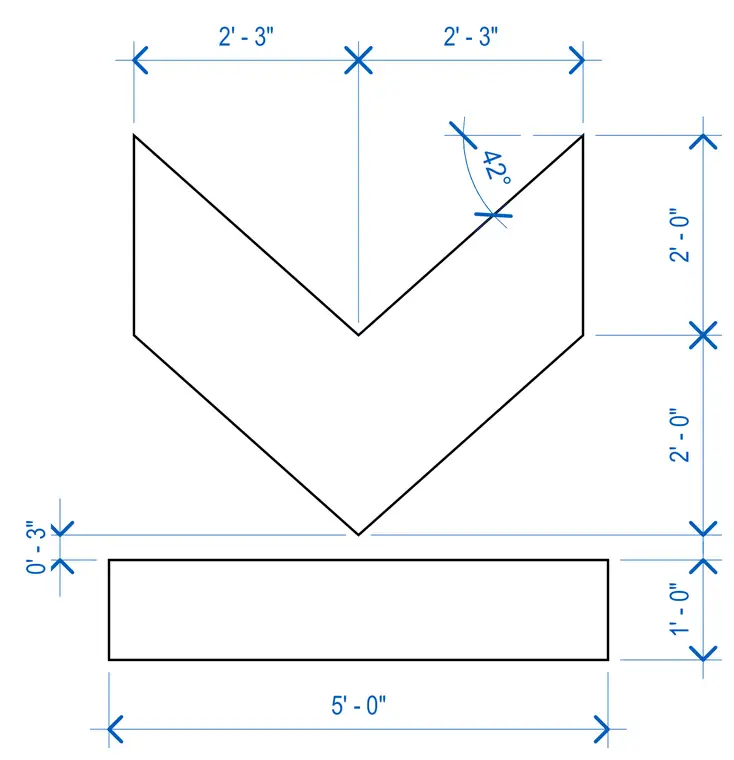

A directional graphic layout with an overall width of five feet and a height of five feet three inches includes a base element and a chevron-shaped indicator. The lower base rectangle measures five feet wide by one foot high with a zero-foot three-inch clearance to the chevron point. The chevron consists of two equal upper segments spanning two feet three inches each on either side of the centerline with a forty-two degree interior angle. Vertical dimensions indicate a two-foot height for the lower chevron section and an additional two-foot height for the upper angled points.
