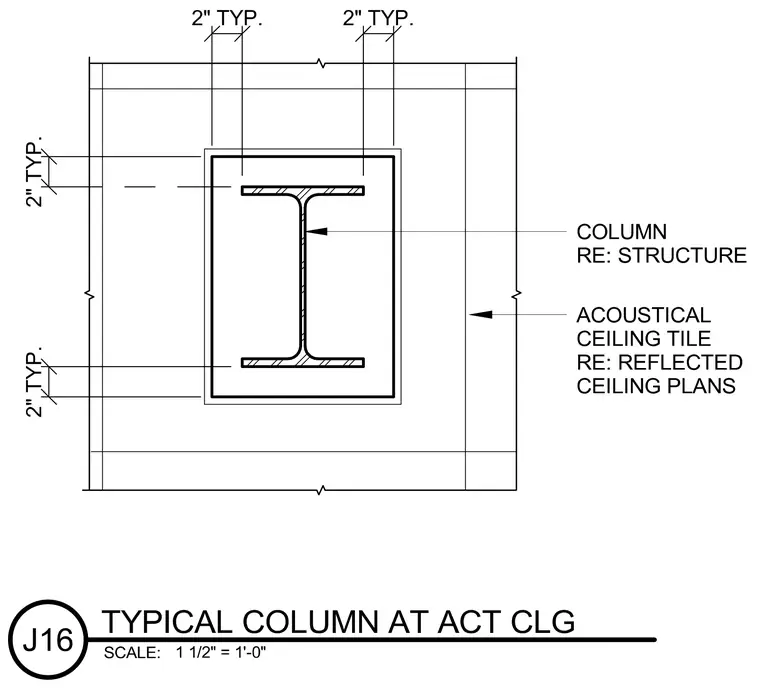

A structural steel column penetrates an acoustical ceiling tile ceiling system. The column maintains a typical two-inch clearance on all sides from the surrounding ceiling construction. Callouts reference structural drawings for column sizing and reflected ceiling plans for acoustical ceiling tile details.
