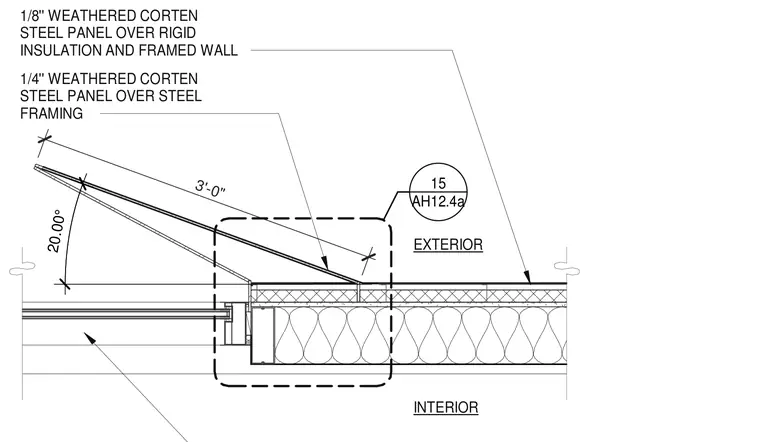

An exterior wall assembly incorporates a one-eighth-inch weathered Corten steel panel mounted over rigid insulation and a framed wall. A quarter-inch weathered Corten steel panel is positioned over steel framing at a twenty-degree angle with a three-foot dimension. The storefront system interfaces below the inclined panel assembly, separating exterior and interior conditions.
EXTERIOR INTERIOR 1/8'' WEATHERED CORTEN STEEL PANEL OVER RIGID INSULATION AND FRAMED WALL 1/4'' WEATHERED CORTEN STEEL PANEL OVER STEEL FRAMING 3'-0" 20.00° AH12.4a 15
