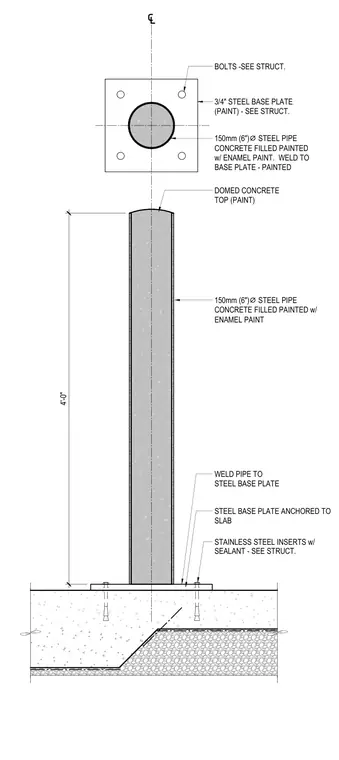

A surface-mounted metal bollard consists of a one hundred fifty millimeter six-inch diameter steel pipe filled with concrete and finished with enamel paint. The top is finished with a domed concrete top. The pipe is welded to a three-quarter-inch painted steel base plate. The base plate is anchored to the concrete slab using stainless steel inserts with sealant and structural bolts sized per structural drawings.
DOMED CONCRETE TOP (PAINT) 150mm (6") ⌀ STEEL PIPE CONCRETE FILLED PAINTED w/ ENAMEL PAINT STEEL BASE PLATE ANCHORED TO SLAB WELD PIPE TO STEEL BASE PLATE STAINLESS STEEL INSERTS w/ SEALANT - SEE STRUCT. 4'-0" 3/4" STEEL BASE PLATE (PAINT) - SEE STRUCT. BOLTS -SEE STRUCT. 150mm (6") ⌀ STEEL PIPE CONCRETE FILLED PAINTED w/ ENAMEL PAINT. WELD TO BASE PLATE - PAINTED ℄
