Architectural · A-XC3YP

Tactile Exit Sign

Materials

Elements

About this detail

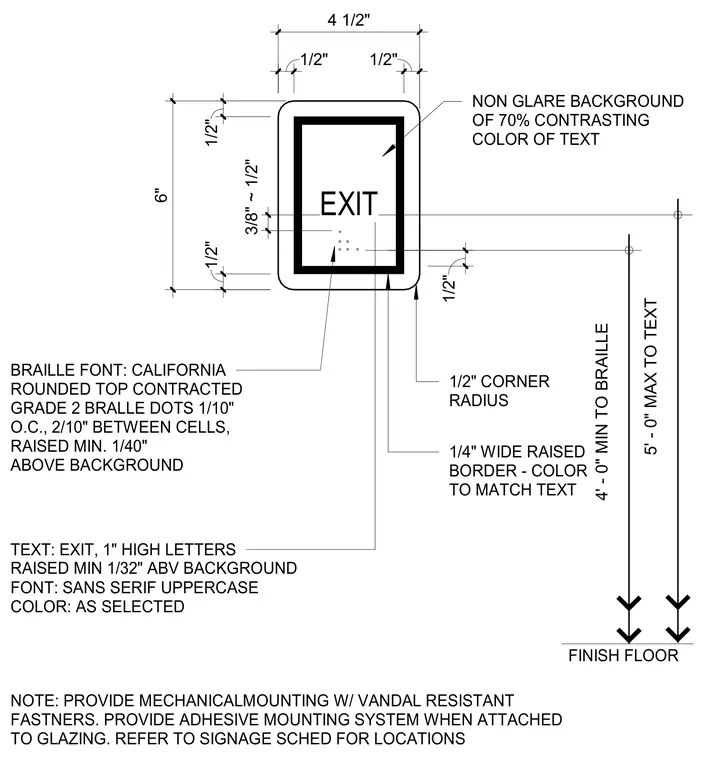

A tactile exit sign is positioned between four feet zero inches minimum and five feet zero inches maximum above the finish floor to the text. The sign features a non-glare background of seventy percent contrasting color to the text, a one-quarter inch wide raised border, and a one-half inch corner radius. The lettering consists of one inch high uppercase sans-serif text raised a minimum of one-thirty-second inch above the background. California rounded top contracted grade two braille dots are spaced one-tenth inch on center with two-tenths inch between cells, raised a minimum of one-fortieth inch above the background. Mechanical mounting with vandal-resistant fasteners is provided, or an adhesive mounting system when attached to glazing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
