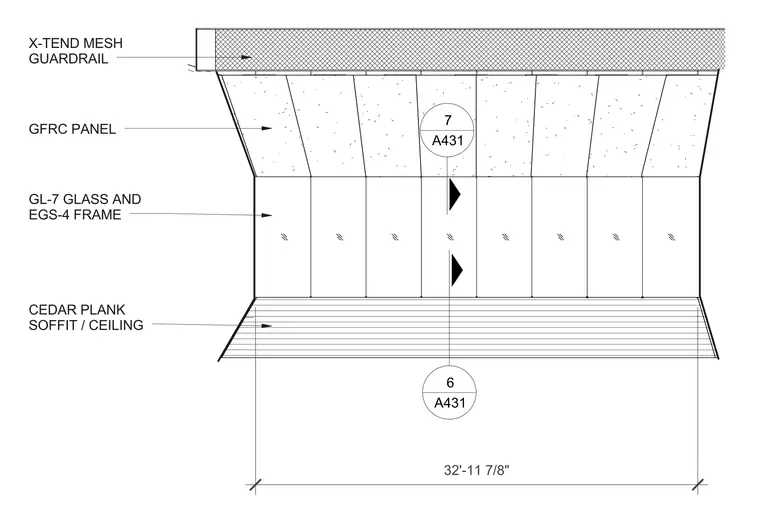

The assembly incorporates a cedar plank soffit and ceiling transitioning upward into GL-7 glass panels housed within EGS-4 frames. Above the glazed section, glass fiber reinforced concrete panels interface with the upper facade components. A stainless steel X-tend mesh guardrail caps the top of the assembly at a dimensioned width of thirty-two feet eleven and seven-eighths inches. Detail callouts reference drawings seven and six on sheet A431.
GFRC PANEL GL-7 GLASS AND EGS-4 FRAME CEDAR PLANK SOFFIT / CEILING X-TEND MESH GUARDRAIL 32'-11 7/8" 7 A431 _____________________ 6 A431 _____________________
