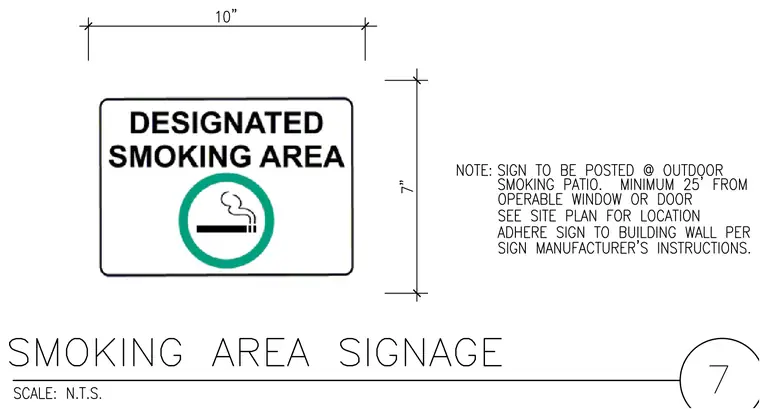

Designated smoking area sign measuring ten inches wide by seven inches high. The sign is posted at an outdoor smoking patio at a minimum distance of twenty-five feet from any operable window or door. Exact placement is per the site plan. The sign adheres to the building wall following the manufacturer instructions.
