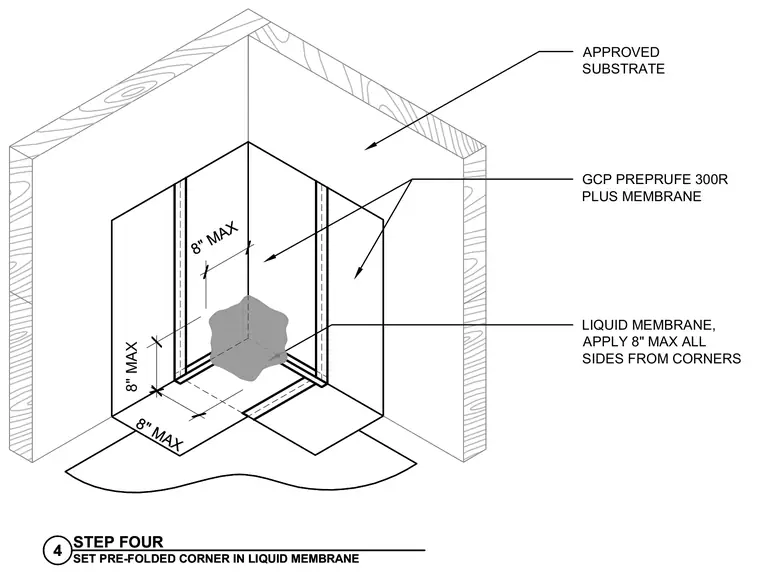

A pre-folded corner is set into a liquid membrane applied over an approved substrate and GCP Preprufe 300R Plus membrane. The liquid membrane extends a maximum of 8 inches on all sides from the corners.
4 STEP FOUR SET PRE-FOLDED CORNER IN LIQUID MEMBRANE GCP PREPRUFE 300R PLUS MEMBRANE LIQUID MEMBRANE, APPLY 8" MAX ALL SIDES FROM CORNERS 8" MAX 8" MAX 8" MAX APPROVED SUBSTRATE 4 STEP FOUR SET PRE-FOLDED CORNER IN LIQUID MEMBRANE GCP PREPRUFE 300R PLUS MEMBRANE LIQUID MEMBRANE, APPLY 8" MAX ALL SIDES FROM CORNERS 8" MAX 8" MAX 8" MAX APPROVED SUBSTRATE
