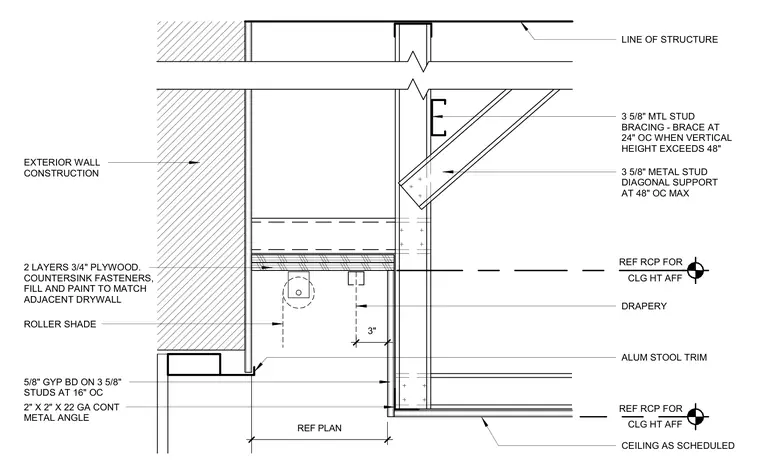

This window drapery detail shows a recessed pocket assembly integrated into a framed ceiling and exterior wall condition. The ceiling consists of five-eighths-inch gypsum board over three-and-five-eighths-inch metal studs spaced at sixteen inches on center, terminated with a two-by-two-by-twenty-two-gauge continuous metal angle. The drapery pocket framing incorporates two layers of three-quarter-inch plywood with countersunk fasteners, filled and painted to match adjacent drywall. A roller shade and drapery track are positioned within the pocket, framed by a three-and-five-eighths-inch metal stud diagonal support at forty-eight inches on center maximum and three-and-five-eighths-inch metal stud bracing spaced at twenty-four inches on center when vertical height exceeds forty-eight inches. An aluminum stool trim is installed at the sill adjacent to the exterior wall construction.
CLG HT AFF REF RCP FOR CLG HT AFF REF RCP FOR 2" X 2" X 22 GA CONT METAL ANGLE 5/8" GYP BD ON 3 5/8" STUDS AT 16" OC CEILING AS SCHEDULED 3 5/8" MTL STUD BRACING - BRACE AT 24" OC WHEN VERTICAL HEIGHT EXCEEDS 48" LINE OF STRUCTURE REF PLAN ROLLER SHADE 3 5/8" METAL STUD DIAGONAL SUPPORT AT 48" OC MAX DRAPERY 2 LAYERS 3/4" PLYWOOD. COUNTERSINK FASTENERS, FILL AND PAINT TO MATCH ADJACENT DRYWALL 3" EXTERIOR WALL CONSTRUCTION ALUM STOOL TRIM
