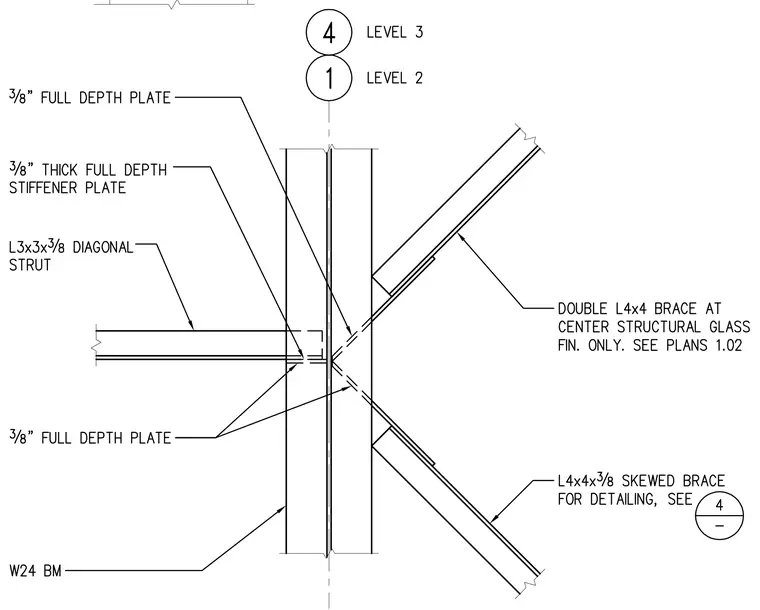

A W24 beam serves as the primary support member for intersecting diagonal structural elements. A L3x3x3/8 diagonal strut connects horizontally via a three-eighths-inch full-depth plate and a matching three-eighths-inch thick full-depth stiffener plate. Double L4x4 braces frame into the center structural glass fin location, while a L4x4x3/8 skewed brace provides additional bracing framed to the assembly. All connections utilize full-depth plates welded or detailed per structural requirements.
