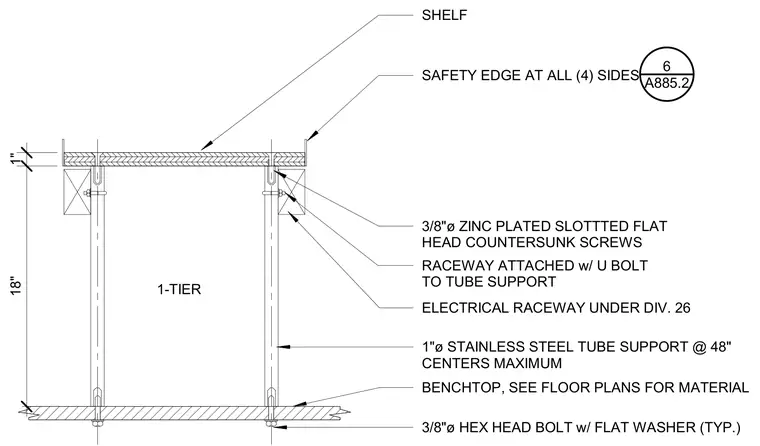

A one-tier benchtop assembly is supported by one-inch diameter stainless steel tube supports spaced at forty-eight inches maximum centers. The shelf features a safety edge on all four sides and is secured with three-eighths-inch diameter zinc plated slotted flat head countersunk screws. Electrical raceways are attached to the tube supports using U-bolts under Division 26. The entire support assembly is anchored to the floor below using three-eighths-inch diameter hex head bolts with flat washers.
3/8"ø ZINC PLATED SLOTTTED FLAT HEAD COUNTERSUNK SCREWS RACEWAY ATTACHED w/ U BOLT TO TUBE SUPPORT ELECTRICAL RACEWAY UNDER DIV. 26 1"ø STAINLESS STEEL TUBE SUPPORT @ 48" CENTERS MAXIMUM BENCHTOP, SEE FLOOR PLANS FOR MATERIAL 3/8"ø HEX HEAD BOLT w/ FLAT WASHER (TYP.) 1-TIER 1" 18" SAFETY EDGE AT ALL (4) SIDES A885.2 6 SHELF
