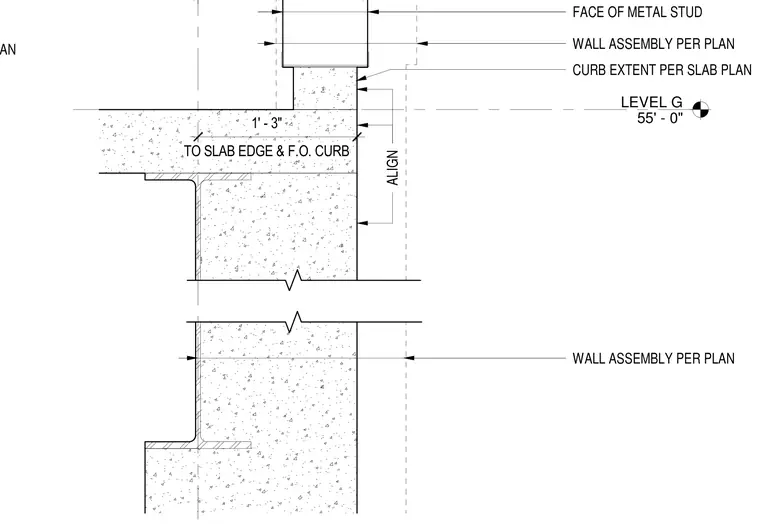

A concrete slab edge bears on structural framing with a raised concrete curb positioned one foot three inches from the slab edge to the face of the curb. A cold-formed metal stud wall assembly aligns with the face of the concrete curb per plan. The curb extent and wall assembly dimensions are coordinated per the slab plan and Level G elevation at fifty-five feet zero inches.
LEVEL G 55' - 0" TO SLAB EDGE & F.O. CURB 1' - 3" ALIGN WALL ASSEMBLY PER PLAN FACE OF METAL STUD WALL ASSEMBLY PER PLAN CURB EXTENT PER SLAB PLAN CURB EXTENT PER SLAB PLAN
