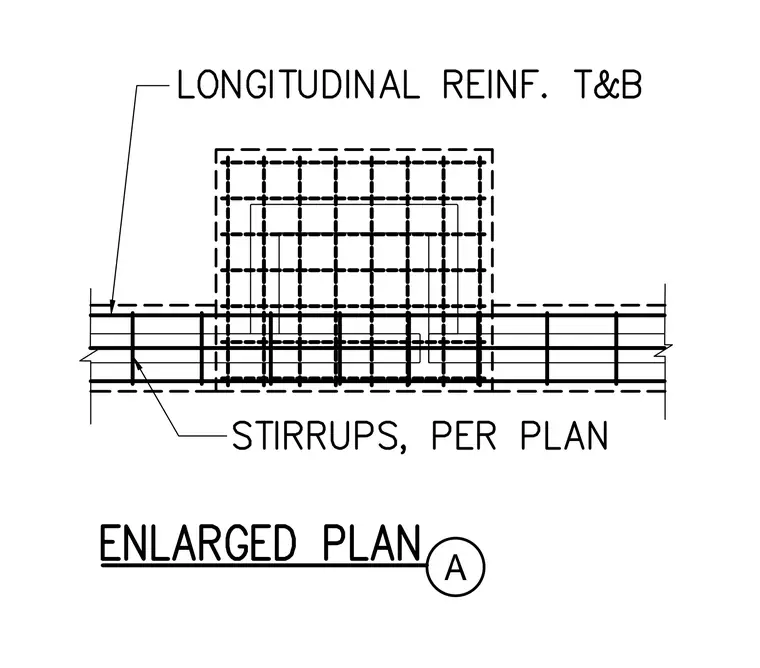

A concrete beam intersection is reinforced with top and bottom longitudinal reinforcement and stirrups sized per plan, maintaining alignment of the intersecting structural members and reinforcing bars.
