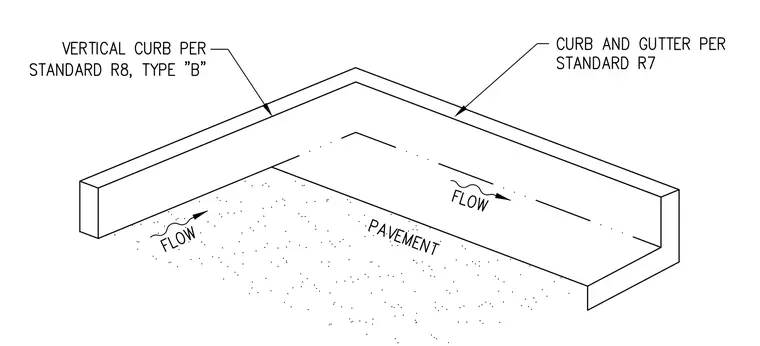

A transition occurs between a vertical curb per standard R8, type B and a curb and gutter per standard R7 alongside adjoining pavement. Flow arrows indicate drainage direction across the paved surface and along the gutter line.
