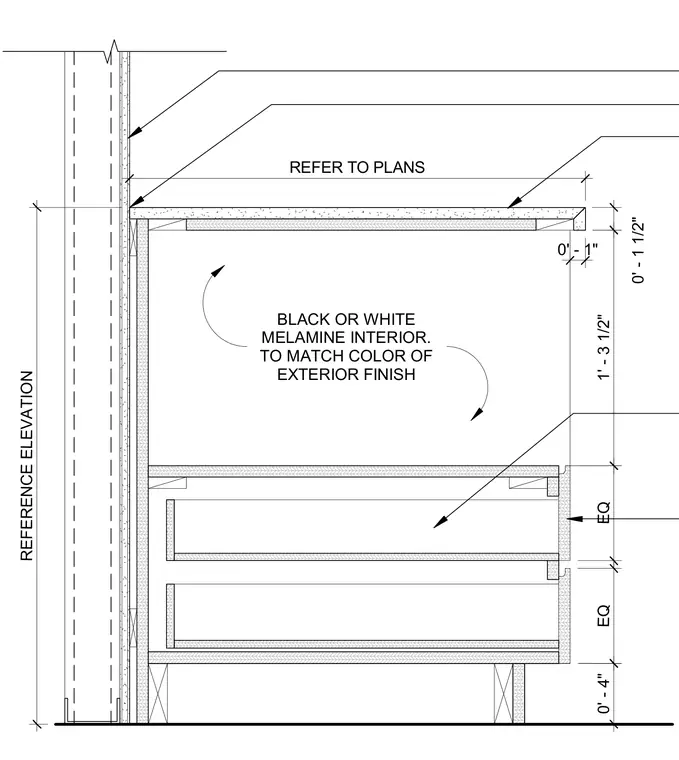

A millwork drawer base cabinet features a black or white melamine interior matching the color of the exterior finish. Vertical dimensions outline a 0'-4" toe space, equal drawer spacings, a 1'-3 1/2" drawer stack height, and a 0'-1 1/2" countertop thickness. Horizontal dimensions and reference elevations coordinate the cabinet placement against the wall framing and reference elevation.
REFERENCE ELEVATION 0' - 4" 0' - 1 1/2" BLACK OR WHITE MELAMINE INTERIOR. TO MATCH COLOR OF EXTERIOR FINISH REFER TO PLANS EQ 0' - 1" 1' - 3 1/2" EQ
