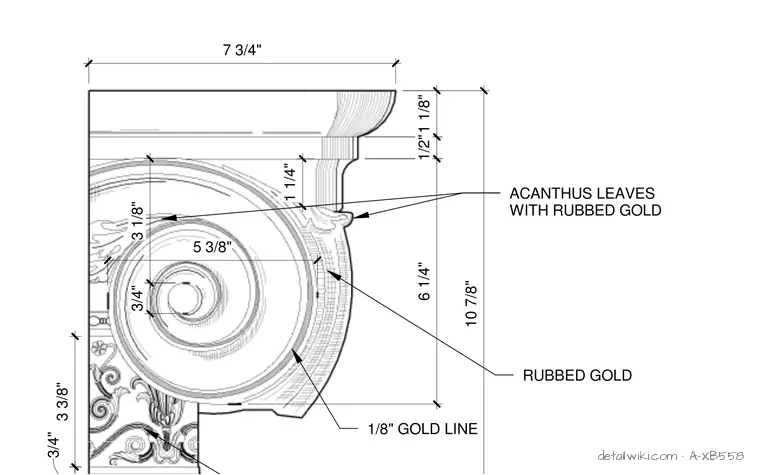

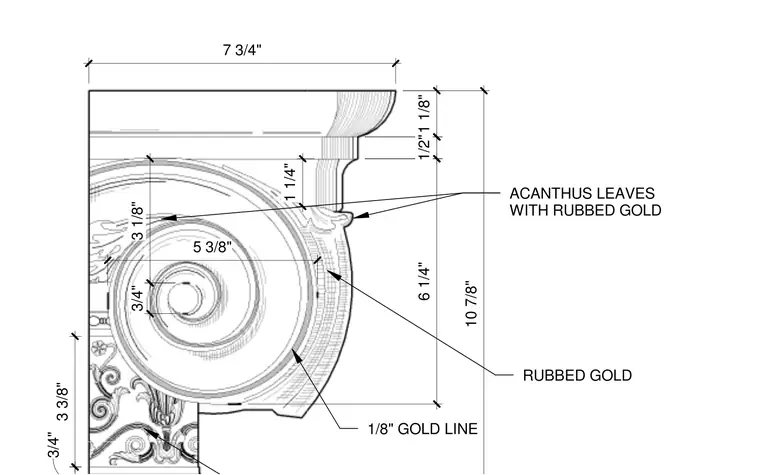

Ornate classical column capital side elevation and dimensional layout. The overall height measures ten and seven-eighths inches with a top width of seven and three-quarters inches. Specific decorative features include acanthus leaves highlighted with rubbed gold finish, a one-eighth-inch gold line, and additional rubbed gold ornamentation throughout the scrollwork.
10 7/8" 6 1/4" 5 3/8" 1 1/8" 1/2" 3/4" ACANTHUS LEAVES WITH RUBBED GOLD 3 1/8" 7 3/4" 3/4" 3 3/8" 1 1/4" 1/8" GOLD LINE RUBBED GOLD
