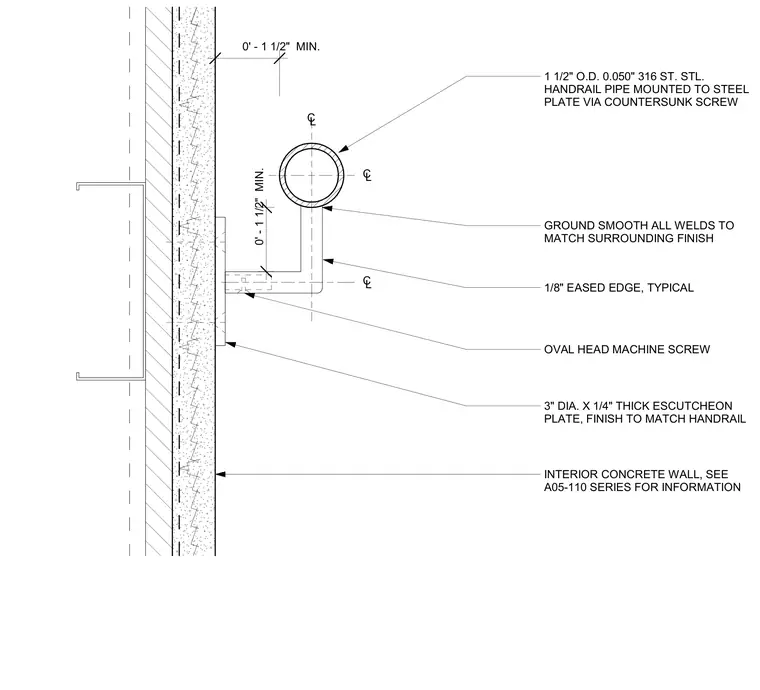

A one-and-a-half-inch outside diameter zero-point-zero-five-inch-thick type three hundred sixteen stainless steel handrail pipe is mounted to a steel plate via a countersunk screw. All welds are ground smooth to match the surrounding finish, featuring one-eighth-inch eased edges typically. The mounting bracket connects via an oval head machine screw through a three-inch diameter by quarter-inch thick escutcheon plate, with the finish matched to the handrail. The entire assembly anchors to an interior concrete wall backed by metal studs.
0' - 1 1/2" MIN. 0' - 1 1/2" MIN. 1 1/2" O.D. 0.050" 316 ST. STL. HANDRAIL PIPE MOUNTED TO STEEL PLATE VIA COUNTERSUNK SCREW GROUND SMOOTH ALL WELDS TO MATCH SURROUNDING FINISH 1/8" EASED EDGE, TYPICAL OVAL HEAD MACHINE SCREW INTERIOR CONCRETE WALL, SEE A05-110 SERIES FOR INFORMATION C L CL CL 3" DIA. X 1/4" THICK ESCUTCHEON PLATE, FINISH TO MATCH HANDRAIL
