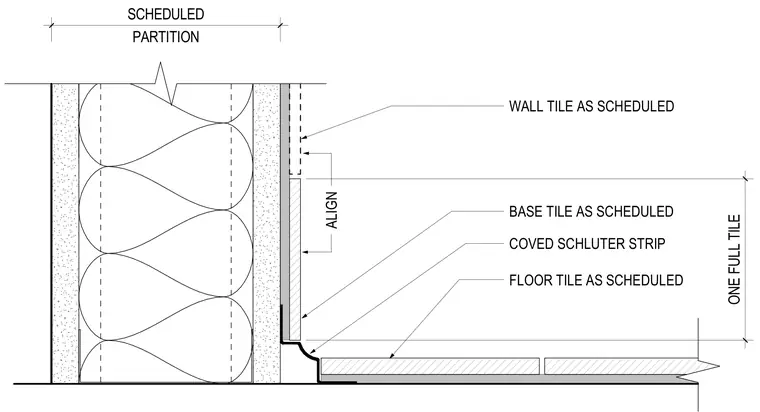

This interior wall base assembly features scheduled wall tile transitioning to a matching base tile and floor tile over a scheduled partition. A coved Schluter metal transition strip is integrated at the intersection of the wall base and the floor tile. Wall tiles align vertically with the base tile course above. The floor tile is laid on a finished substrate abutting the coved trim edge.
WALL TILE AS SCHEDULED PARTITION SCHEDULED BASE TILE AS SCHEDULED FLOOR TILE AS SCHEDULED ONE FULL TILE ALIGN COVED SCHLUTER STRIP
