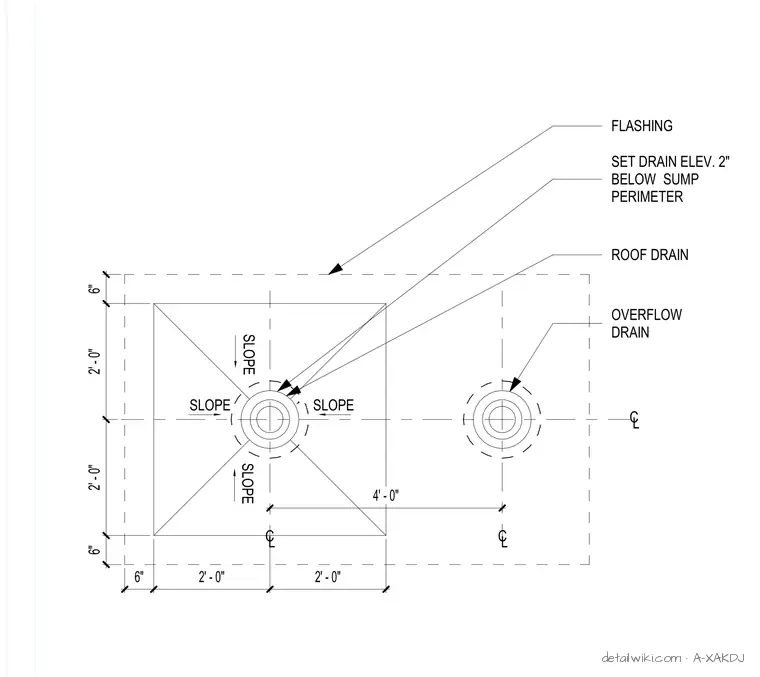

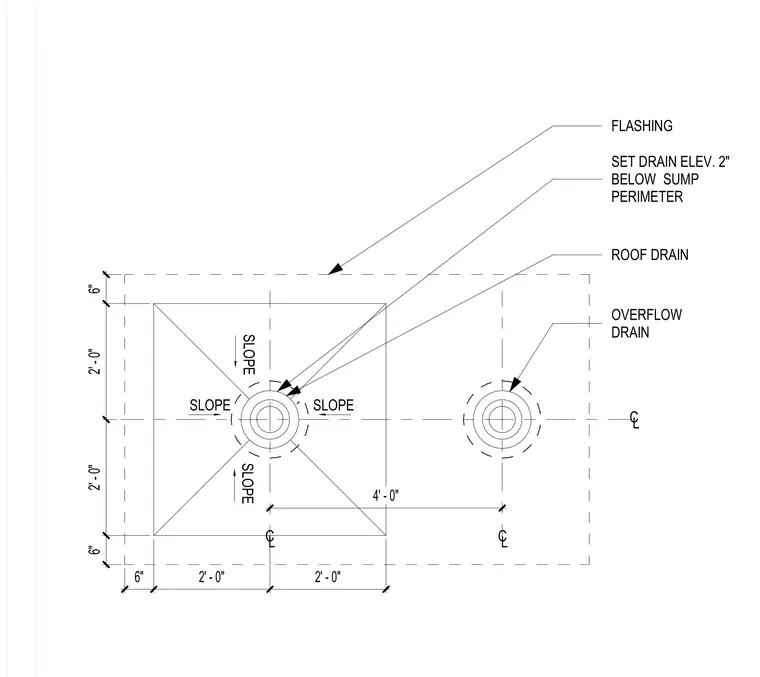

A four-foot by four-foot square defines the sump area, with the primary roof drain centered within it. The overflow drain is positioned four feet from the center of the primary drain. The primary roof drain elevation is set two inches below the surrounding sump perimeter, with slopes directed toward the drain. Flashing is provided at the perimeter of the sump area.
