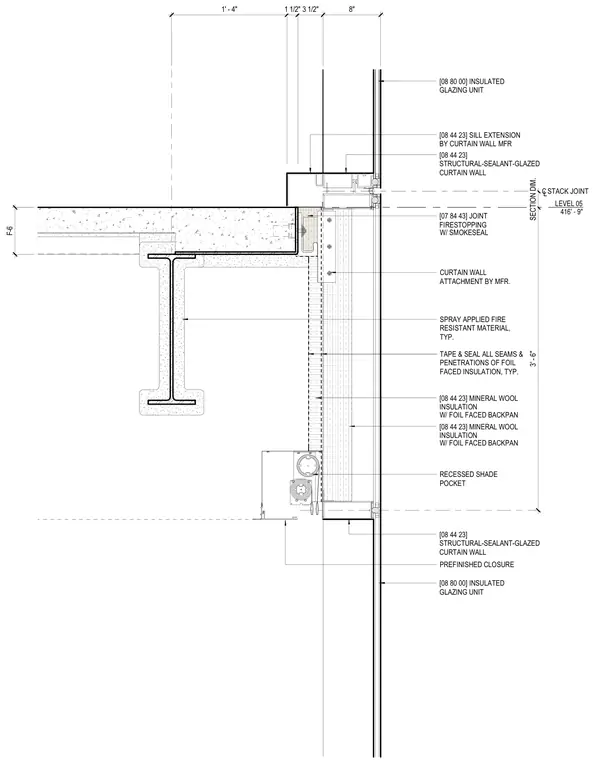

This wall section details the structural-sealant-glazed curtain wall interface at a concrete floor slab on metal deck supported by a steel beam. The assembly incorporates a prefinished closure, a recessed shade pocket with a foil-faced backpan, and mineral wool insulation with taped and sealed seams. Joint firestopping with smoke seal is installed at the slab edge alongside manufacturer-provided curtain wall attachments and sill extensions. Spray-applied fire-resistant material is applied to the structural steel framing.
LEVEL 05 416' - 9" PREFINISHED CLOSURE SPRAY APPLIED FIRE RESISTANT MATERIAL, TYP. RECESSED SHADE POCKET W/ FOIL FACED BACKPAN SECTION DIM. 3' - 6" 1' - 4" 1 1/2" 3 1/2" 8" TAPE & SEAL ALL SEAMS & PENETRATIONS OF FOIL FACED INSULATION, TYP. F-6 STACK JOINT CURTAIN WALL ATTACHMENT BY MFR. [08 80 00] INSULATED GLAZING UNIT [08 44 23] STRUCTURAL-SEALANT-GLAZED CURTAIN WALL [08 44 23] MINERAL WOOL INSULATION [08 44 23] MINERAL WOOL INSULATION W/ FOIL FACED BACKPAN C L [07 84 43] JOINT FIRESTOPPING W/ SMOKESEAL [08 80 00] INSULATED GLAZING UNIT [08 44 23] STRUCTURAL-SEALANT-GLAZED CURTAIN WALL [08 44 23] SILL EXTENSION BY CURTAIN WALL MFR
