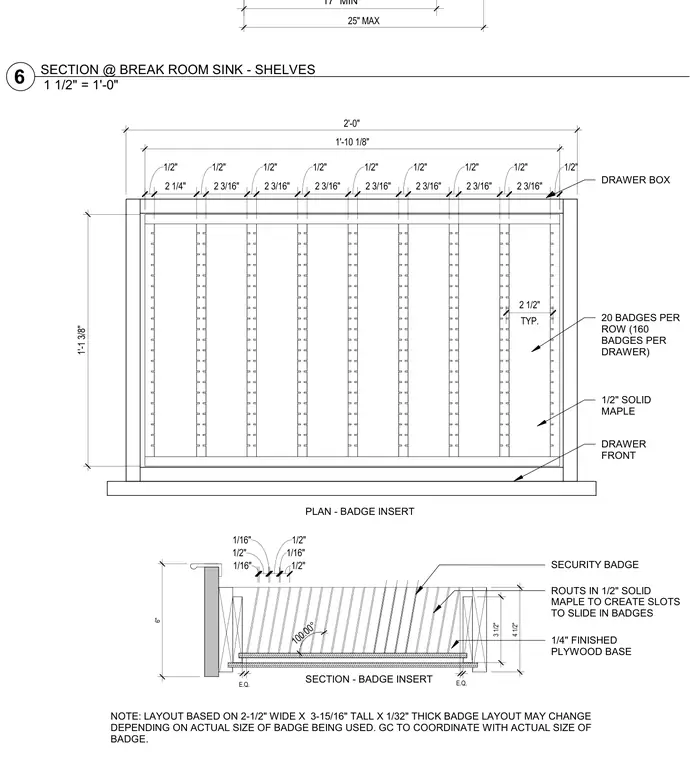

This custom millwork detail shows a drawer box featuring a half-inch solid maple insert with routed slots designed to hold security badges. The layout accommodates twenty badges per row across a one foot ten and one-eighth inch width, configured for one hundred sixty badges total per drawer above a quarter-inch finished plywood base. The security badge insert is routed directly into the half-inch solid maple with specific slot dimensions and angles coordinated by the general contractor to match the exact badge size. The assembly is detailed with comprehensive plan and section views indicating equal spacing, overall widths of two feet, and height clearances.
17" MIN 25" MAX 1'-10 1/8" 1'-1 3/8" 1/2" 1/16" 1/2" 1/16" 1/2" 1/16" TYP. 2 1/2" 1/2" 2 1/4" 1/2" 2 3/16" 1/2" 2 3/16" 1/2" 2 3/16" 1/2" 2 3/16" 1/2" 2 3/16" 1/2" 2 3/16" 1/2" 2 3/16" 1/2" SECURITY BADGE ROUTS IN 1/2" SOLID MAPLE TO CREATE SLOTS TO SLIDE IN BADGES SECTION - BADGE INSERT PLAN - BADGE INSERT NOTE: LAYOUT BASED ON 2-1/2" WIDE X 3-15/16" TALL X 1/32" THICK BADGE LAYOUT MAY CHANGE DEPENDING ON ACTUAL SIZE OF BADGE BEING USED. GC TO COORDINATE WITH ACTUAL SIZE OF BADGE. 1/4" FINISHED PLYWOOD BASE DRAWER FRONT 1/2" SOLID MAPLE 20 BADGES PER ROW (160 BADGES PER DRAWER) DRAWER BOX 2'-0" 6" 3 1/2" 4 1/2" 100.00° E.Q. E.Q. 1 1/2" = 1'-0" 6 SECTION @ BREAK ROOM SINK - SHELVES
