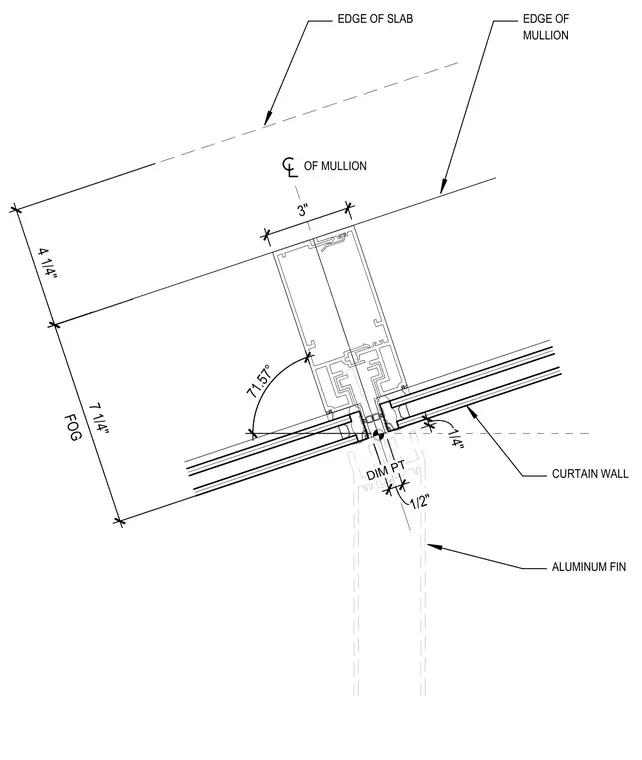

An angled curtain wall mullion meets the glazing at a seventy-one point five seven degree angle relative to the adjacent facade plane. A centerline runs through the aluminum mullion profile, maintaining three inches to the edge of the mullion and four and one-quarter inches to the edge of the slab. An exterior aluminum fin projects outward, aligned with the dimension point and offset by one-half inch. The glazing thickness measures one-quarter inch at the curtain wall framing pockets.
OF MULLION F O G 7 1 / 4 " EDGE OF SLAB 1 / 2 " 4 1 / 4 " DIM PT 7 1 . 5 7 ° CURTAIN WALL 3 " EDGE OF MULLION 1 / 4 " ALUMINUM FIN
