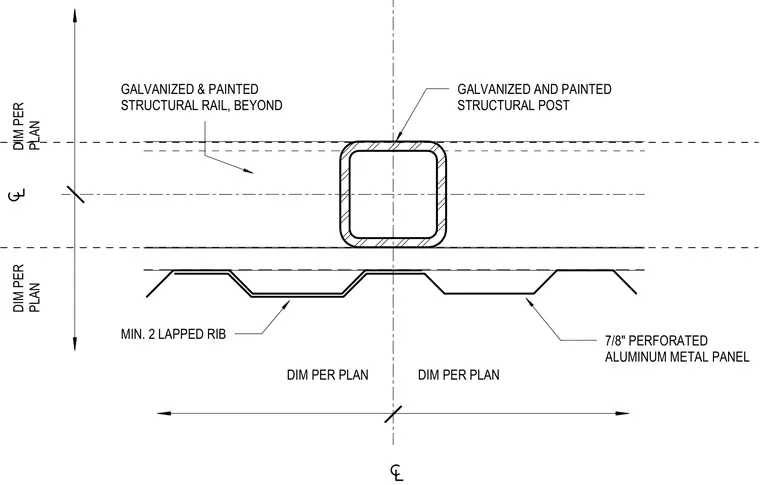

A galvanized and painted structural post aligns with a center line behind a facade assembly. A 7/8-inch perforated aluminum metal panel with a minimum of two lapped ribs wraps the exterior face. Dimensions are sized per plan from the center line to the surrounding framing elements. A galvanized and painted structural rail appears beyond the primary post alignment.
DIM PER PLAN DIM PER PLAN DIM PER PLAN DIM PER PLAN GALVANIZED & PAINTED STRUCTURAL RAIL, BEYOND GALVANIZED AND PAINTED STRUCTURAL POST 7/8" PERFORATED ALUMINUM METAL PANEL MIN. 2 LAPPED RIB
